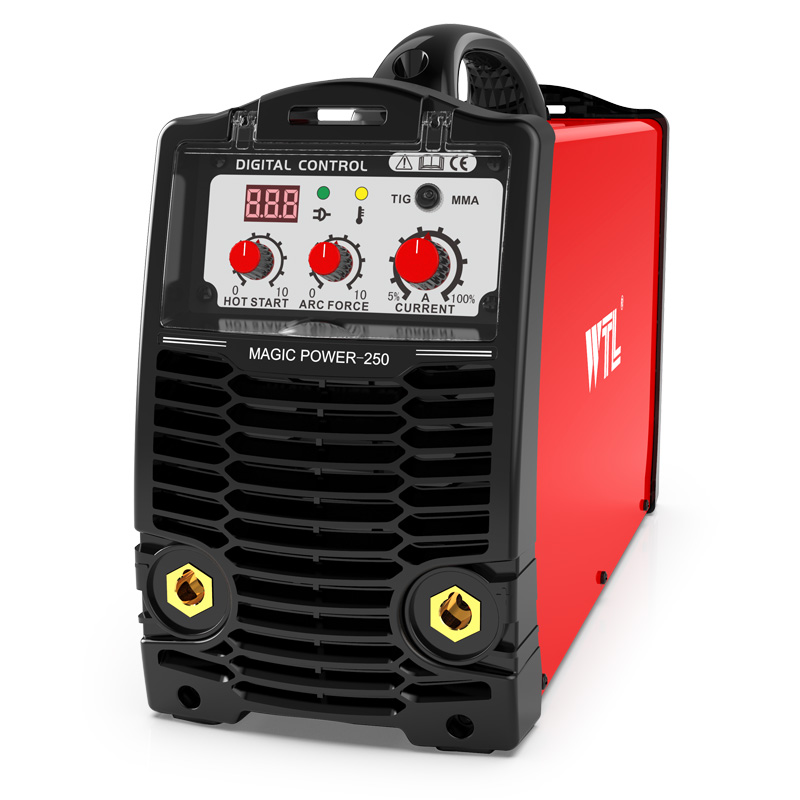

MMA Welder MAGIC POWER 250&MAGIC POWER 250CEL&MAGIC GPOWER 250CEL
This professional light industrial welding machine can support MMA&TIG welding. With a duty cycle of 40% 250A, this welder can operate for a long time period, which makes it suitable for industrial operating environment. In order to achieve an optimal welding effect, the arc force settings can be adjustable. Preset and real time operating parameters can be displayed on digital tube intuitively.
- With the Lift TIG function, this welding machine can meet the need of TIG welding
The welding machine is featured with automatically adjusted arc force and hot start offering good ignition without the electrode sticking or arc breaking, ensuring extremely high welding quality. - Soft switching technology: soft switching technology ensures low power loss and a stable arc, providing smooth welding. It also makes sure IGBT will have long service life.
- High OCV (Open-circuit Voltage): The welding machine has a high open-circuit voltage, which is capable of easy welding of E6010 and E6011 electrodes.
- This welder can have a good operating performance of outdoor welding.
- This welder adopts patented Smart-V technology and adjustable OCV (operated circuit voltage), providing low power loss and safe welding process. Comparing with welding machine fitted with VRD (voltage reduce device), it features quicker arc ignition.
- PFC technology (MAGIC GPOWER 250CEL): PFC technology is integrated in the welding machine, which features an input voltage ranging from 1ph 95V to 275V, and a power factor up to 99%. The high electrical efficiency and stable welding output can be realized due to the PFC technology.
- This stick welder is designed with a 16A plug meeting European standard. Low welding current is required, ensuring safe and stable welding operations.
- Intelligent protection against low voltage, over voltage, over current and over heat; automatic alarm and weld output stop due to abnormal operation condition, providing great protection of operator and machine
- A generator can be used for supplying power.
| MODEL | MAGIC POWER 250 | MAGIC POWER 250 CEL | MAGIC GPOWER-250CEL | |||||
| Power Supply Valtage(V) | 3～380/400/415/440±10% | 3～380/400/415/440±10% | 1～100/110/120/127±10% | 1～200/220/230/240±10% | ||||
| Frequency(Hz) | 50/60 | 50/60 | 50/60 | |||||
| Function | MMA | TIG | MMA | TIG | MMA | TIG | MMA | TIG |
| Rated input power(kw) | 8.2 | 5.1 | 8.7 | 5.7 | 3.8 | 2.3 | 8.7 | 6.3 |
| Rated input Current(A) | 13.5 | 8.3 | 18.6 | 12.4 | 35 | 21.6 | 39.6 | 28.6 |
| Duty Cycle(40℃ 10min) | 40%250A | 35%250A | 40%160A | 30%125A | 35%250A | |||
| 60%205A | 60%190A | 60%125A | 60%95A | 60%125A | 60%190A | |||
| 100%160A | 100%150A | 100%100A | 100%75A | 100%90A | 100%140A | |||
| No load Voltage(V) | 45(Controlled) | 50(Controlled) | 55(Controlled) | |||||
| Welding Current Range(A) | 10～250 | 10～250 | 12～250 | 12～250 | ||||
| Efficiency(%) | 91 | 80 | 89 | 80 | 81 | 80 | ||
| Net Weight(kg) | 11.5 | 10.5 | 11.5 | |||||
| Dimensions(mm) | 450×175×310 | 450×175×310 | 480×120×220 | |||||
| Protection Class | IP23 | IP23 | IP23 | |||||
| Insulation Class | F | F | F | |||||
| Cooling | AF | AF | AF | |||||
| Electrode diameter | φ2.5,φ3.2,φ4.0,φ5.0 | φ2.5,φ3.2,φ4.0,φ5.0 | φ2.5,φ3.2,φ4.0,φ5.0 | |||||
| Electrode Type | 6013,7018,etc. | 6010,6011,6013,7018,etc. | 6010,6011,6013,7018,etc. | |||||
- Welding cable with electrode holder - 300A - 25 mm² (200) - 3m, 35-70mm² welding connector
- Earth cable with ground clamp - 300A - 25 mm² (200)- 3m, 35-70 mm² welding connector
- Carton packaging
