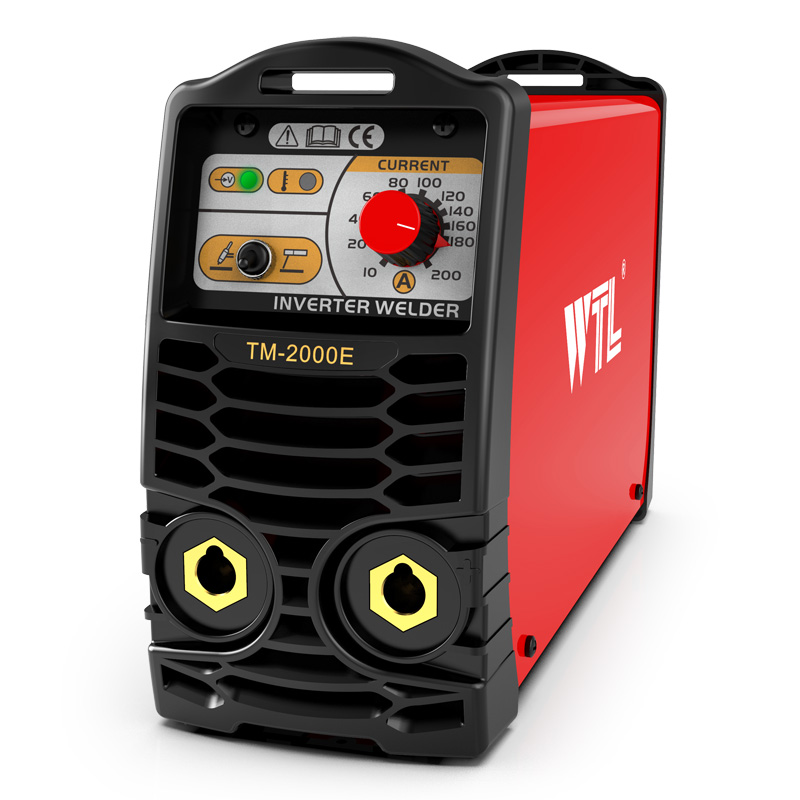

MMA Welder TM-1600E2&TM-1600E&TM-2000E
This welding equipment is specially designed for DIY projects. It is small in size, economic and support an input voltage of 1ph±220V. This machine focuses on MMA&TIG welding. The electrode size ranges from φ2.5-4.0, which meets the general standards of many industries.
- Easy to operate, small in size and affordable price
- Lift TIG arc starting meets the requirement of TIG welding
- This welder adopts patented Smart-V technology and adjustable OCV (operated circuit voltage), providing low power loss and safe welding process. Comparing with welding machine fitted with VRD (voltage reduce device), it features quicker arc ignition.
- Self adjustment of arc force, hot start prevent arc from sticking and breaking, make sure perfect welding performance.
- Intelligent protection against low voltage, over voltage, over current and over heat; automatic alarm and weld output stop due to abnormal operation condition, providing great protection of operator and machine.
| MODEL | TM-1600E² | TM1600E | TM-2000E |
| Power Supply Valtage(V) | 1～200/220/230/240±10% | 1～200/220/230/240±10% | 1～200/220/230/240±10% |
| Frequency(Hz) | 50/60Hz | 50/60Hz | 50/60Hz |
| Function | MMA | MMA | MMA |
| Rated input power(kw) | 5.2 | 5.2 | 7.5 |
| Rated input Current(A) | 31.7 | 31.7 | 40.5 |
| Effective Current(A) | 15.9 | 15.9 | 20 |
| Duty Cycle(40℃ 10min) | 25%160A | 25%160A | 25%200A |
| 60%110A | 60%110A | 60%120A | |
| 100%95A | 100%95A | 100%100A | |
| No load Voltage(V) | 70(Controlled) | 45(Controlled) | 50(Controlled) |
| Welding Current Range(A) | 5～160 | 15～160 | 5～200 |
| Efficiency(%) | 82 | 82 | 80 |
| Net Weight(kg) | 4.5 | 5 | 6 |
| Dimensions(mm) | 280×120×220 | 280×120×220 | 300×120×220 |
| Protection Class | IP23 | IP23 | IP23 |
| Insulation Class | F | F | F |
| Cooling | AF | AF | AF |
| Electrode diameter | φ2.5,φ3.2,φ4.0 | φ2.5,φ3.2,φ4.0 | φ2.5,φ3.2,φ4.0(φ5.0) |
| Electrode Type | 6013,7018,etc. | 6013,7018,etc. | 6013,7018,etc. |
- Welding cable with electrode holder - 200A – 12(160)/16(200) mm² - 3m, 35-70 mm² welding connector
- Earth cable with ground clamp - 300A – 12(160)/16(200) mm² - 3m, 35-70 mm² welding connector
- Carton packaging
