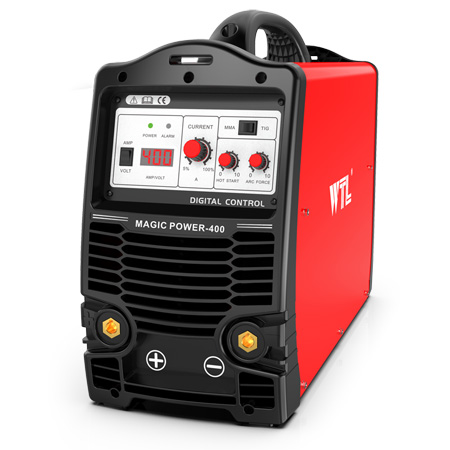

MMA Welder MAGIC POWER 400&MAGIC GPOWER 400
This welder supports MMA&TIG welding. With hot start function, a peak of current will be delivered by the welder during arc striking, making it easy for starting electrode. The digital tube displays preset and real-time current for easy viewing. Equipped with voltage compensator, this welder can maintain the weld current substantially constant, so that the output cable can be over 50m in length. The welding equipment with PFC technology has an input voltage ranged from 1ph/3ph 208V to 660V, which can enable it to apply in different industries and areas.
- This welding equipment supports MMA and TIG function, which can meet common welding needs.
- With hot start function, a peak of current will be delivered by the welder during arc striking, making it easy for starting electrode. Adjustable arc force settings ensure optimal welding effect.
- Soft switching technology: soft switching technology ensures low power loss and a stable arc, providing smooth welding. It also makes sure IGBT will have long service life.
- PFC technology (MAGIC GPOWER 400): PFC technology is integrated in the welding machine, which features an input voltage ranging from 1ph/3ph 208V to 660V, and a power factor up to 99%. The high electrical efficiency and stable welding output can be realized due to the PFC technology.
- Intelligent protection against low voltage, over voltage, over current and over heat; automatic alarm and weld output stop due to abnormal operation condition, providing great protection of operator and machine.
- Long output cables: the voltage compensator can maintain the weld current substantially constant irrespective of line-voltage variations, so that the output cables can be over 50m in length.
- Optional VRD(Voltage Reduction Device) function will make the operation safer for special application.
- A generator can be used for supplying power.
| MODEL | MAGIC POWER 400 | MAGIC GPOWER 400 | ||||||||
| Power Supply Valtage(V) | 3～380/400/415/440±10% | 1～200/220/230/240±10% | 3～200/220/230/240±10% | 3～380/400/415/440±10% | 3～380/400/415/440±10% | |||||
| Frequency(Hz) | 50/60 | 50/60 | ||||||||
| Function | MMA | TIG | MMA | TIG | MMA | TIG | MMA | TIG | MMA | TIG |
| Rated input power(kw) | 16.7 | 12.6 | 8.6 | 6 | 12 | 8.8 | 11.6 | 8.4 | 16.9 | 12.6 |
| Rated input Current(A) | 35.9 | 27.6 | 39.3 | 27.5 | 32.9 | 24.1 | 30.9 | 22.3 | 26.7 | 19.9 |
| Effective Current(A) | 27.8 | 21.4 | 21.5 | 15.1 | 16.5 | 12.1 | 22.9 | 16.5 | 16.9 | 12.6 |
| Duty Cycle(40℃ 10min) | 25%400A | 30%250A | 25%315A | 55%315A | 40%400A | |||||
| 60%400A | 60%175A | 60%200A | 60%300A | 60%330A | ||||||
| 100%300A | 100%160A | 100%160A | 100%230A | 100%250A | ||||||
| No load Voltage(V) | 50(Controlled) | 15(VRD) | ||||||||
| Welding Current Range(A) | 20～400 | 5～250 | 5～315 | 5～315 | 5～400 | |||||
| Efficiency(%) | 86 | 87 | 83 | 86 | 81 | 88 | 85 | 89 | 85 | |
| Net Weight(kg) | 20.5 | 27 | ||||||||
| Dimensions(mm) | 470×250×400 | 470×250×400 | ||||||||
| Protection Class | IP23 | IP23 | ||||||||
| Insulation Class | F | F | ||||||||
| Cooling | AF | AF | ||||||||
| Electrode diameter | φ2.5,φ3.2,φ4.0,φ5.0 | φ2.5,φ3.2,φ4.0,φ5.0 | ||||||||
| Electrode Type | 6013,7018,etc. | 6013,7018,etc. | ||||||||
- Welding cable with electrode holder - 500A - 50 mm² - 3m, 75-90mm² welding connector
- Earth cable with ground clamp - 500A - 50 mm² - 3m, 75-90 mm² welding connector
- Carton packaging
