SA Welding (Submerged-Arc Welding)
This professional welding equipment focuses on SA(submerged-arc welding) welding. It is suitable for industrial application. The digital tube can display preset and actual current and voltage real time for easy viewing. With voltage compensator, the output cables can reach 50-100m. The duty cycle can reach 1000A/100%, which is suitable for long period intensive operation.
- The duty cycle can reach 1000A/100%, which can meet the requirement of long period intensive operation.
- Dual drive cable feeding
- Soft switching technology: soft switching technology ensures low power loss and a stable arc, providing smooth welding. It also makes sure IGBT will have long service life.
- Operating mode: carbon arc gouging and submerged arc welding available.
- Intelligent protection against low voltage, over voltage, over current and over heat; automatic alarm and weld output stop due to abnormal operation condition, providing great protection of operator and machine.
- Long output cables: the voltage compensator can maintain the weld current substantially constant irrespective of line-voltage variations, so that the output cable can be over 50m in length.
- A generator can be used for supplying power.

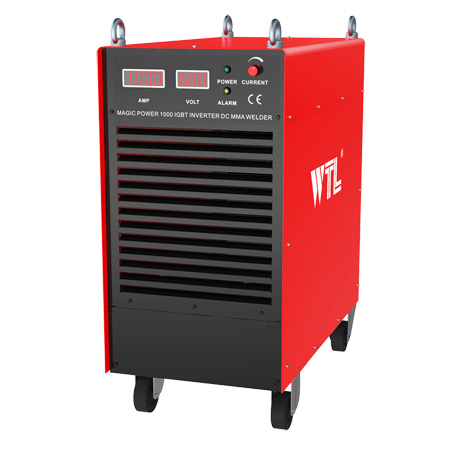

| MODEL | MAGIC POWER 1000 |
| Power Supply Valtage(V) | 3～380/400/415/440±10% |
| Frequency(Hz) | 50/60 |
| Rated input power(kw) | 50 |
| Rated input Current(A) | 80 |
| Duty Cycle(40℃ 10min) | 100%1000A |
| No load Voltage(V) | 50(Controlled) |
| Welding Current Range(A) | 15～1000 |
| Efficiency(%) | 90 |
| Power Factor | 0.95 |
| Net Weight(kg) | 80 |
| Dimensions(mm) | 770×390×860 |
| Protection Class | IP23 |
| Insulation Class | F |
| Cooling | AF |
| Wire diameter | φ2.5,φ3.2,φ4.0,φ5.0 |
- Standard
- Control cable submerged arc - 15m
- Power Cable 5m
- Earth cable-70mm²-15m with 70-10 and 70-12 terminal
- Earth cable-70mm²-5m with 2pcs 70-10 terminal
- Optional
- Submerged arc control unit
- SAW welding Cart
- Contact tip 3.2&4.0&5.0
- Submerged entry nozzle
- Drive roll with knurled groove
