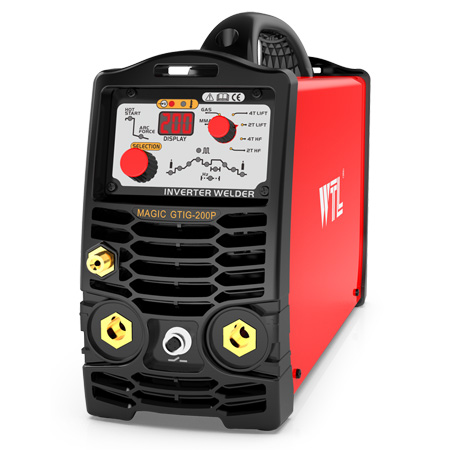

DC TIG Welder MAGIC TIG 200P DV&MAGIC GTIG 200P
This welding equipment supports DC TIG welding. The input voltage ranged from 1ph/110V±10% to 1ph/220V±10%, which makes it applicable in various areas and industries. The electronic HF(High Frequency) technology can largely improve the performance of ignition. All the parameters of pulse function can be adjusted for thinner materials to be welded. Remote controlled welding torch and foot pedal available allow for easily controlling welding process. With hot start function, a peak of current will be delivered by the welder during arc striking, making it easy for starting electrode. The digital tube can display preset and actual current for real-time viewing.
- Pulse operation: enable this equipment to weld thinner metals and high heat conductive metals without burning through, all the pulse parameters can be adjusted.
- Optional remote controllers (up/down TIG torch) are available for automated welding in a convenient manner.
- Using electronic HF striking which can provide quick arc ignition, with little pollution and noise.
- With hot start function, a peak of current will be delivered by the welder during arc striking, making it easy for starting electrode. Adjustable arc force settings ensure optimal welding effect.
- Bilevel: two different predetermined current settings can be easily switched during the welding process, so that there will not be no burning-through phenomenon, the quality and efficiency of welding can be ensured.
- Soft switching technology: using soft switching technology ensures low power loss and a stable arc, providing smooth welding. It also makes sure IGBT will have long service life.
- PFC technology (MAGIC GTIG 200P): PFC technology is integrated in the welding machine, which features an input voltage ranging from 1ph 95V to 275V, and a power factor up to 99%. The high electrical efficiency and stable welding output can be realized due to the PFC technology.
- This stick welder is designed with a 16A plug meeting European standard. Low welding current is required, ensuring safe and stable welding operations.
- Dual voltage technology（MAGIC TIG 200P DV）: this welder can handle a wider range of input voltage of 100V/110V/115V/127V and 200V/220V/230V240V.
- This welder adopts patented Smart-V technology and adjustable OCV (operated circuit voltage), providing low power loss and safe welding process. Comparing with welding machine fitted with VRD (voltage reduce device), it features quicker arc ignition.
- Intelligent protection against low voltage, over voltage, over current and over heat; automatic alarm and weld output stop due to abnormal operation condition, providing great protection of operator and machine.
- A generator can be used for supplying power.
- Microprocessor-controlled welding equipment supports digital display and convenient program updating.
| MODEL | MAGIC TIG-200P DV | MAGIC GTIG-200 | ||||||
| Power Supply Valtage(V) | 1～100/110/120/127±10% | 1～200/220/230/240±10% | 1～100/110/120/127±10% | 1～200/220/230/240±10% | ||||
| Frequency(Hz) | 50/60 | 50/60 | ||||||
| Function | TIG | MMA | TIG | MMA | TIG | MMA | TIG | MMA |
| Rated input power(kw) | 2.4 | 3.7 | 4.3 | 6.4 | 3.43 | 3.95 | 4.6 | 6.8 |
| Rated input Current(A) | 32 | 50 | 27.3 | 40.5 | 31.6 | 37.7 | 21.8 | 33.2 |
| Effective Current(A) | 26.6 | 27.4 | 16.2 | 24 | 17.3 | 18.9 | 11.9 | 16.6 |
| Output Current | 5-125 | 5-160 | 5-200 | 5-160 | 5-125 | 5-200 | 5-200 | |
| Duty Cycle(40℃ 10min) | 35%125A | 40%160A | 35%200A | 30%160A | 25%125A | 30%200A | 25%200A | |
| 60%95A | 60%135A | 60%170A | 60%120A | 60%95A | 60%120A | 60%130A | ||
| 100%80A | 100%105A | 100%120A | 100%100A | 100%80A | 100%100A | 100%100A | ||
| No load Voltage(V) | 27(Controlled) | 25V(Controlled) | ||||||
| Pre/Post Flow(S) | 0.1/0.1-10 | 0.1/0.1-10 | ||||||
| Efficiency(%) | 80 | 80 | ||||||
| Power Factor | 0.7 | 0.7 | ||||||
| Net Weight(kg) | 7.5 | 8.2 | ||||||
| Dimensions(mm) | 400×120×240 | 445×120×240 | ||||||
| Protection Class | IP23 | IP23 | ||||||
| Insulation Class | F | F | ||||||
| Cooling | AF | AF | ||||||
- Standard
- Welding cable with electrode holder - 200A – 16 mm² - 3m, 35-70 mm² welding connector
- Earth cable with ground clamp - 300A – 16 mm² - 3m, 35-70 mm² welding connector
- Carton packaging
- ECR17 TIG
- Welder gas hose
- Clamp*2
- Copper joint
- Optional
- Up/down TIG torch
- Color packaging
